Precedence

We will now look at the structure of some Prolog expressions:


happy(jim):-

		       healthy(jim),

		       wealthy(jim).

which corresponds to happy(jim):- (healthy(jim),wealthy(jim)) or

which corresponds to (happy(jim):- healthy(jim)),wealthy(jim). We can see that the first version is the one we have taken for granted. We describe this situation by saying that ,/2 binds tighter than :-/2.

This relates to the way we are taught to calculate arithmetical expressions in that we are told that we do multiplication before addition (unless brackets are used to override this). But there is another way to think of things: how to construct the expression tree. In this case, we choose the root to be the operator that is `loosest' (in opposition to `tightest' for computational purposes).

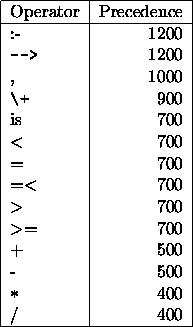

The issue is decided by operator precedence.

To construct a tree which describes a Prolog expression we first look for the operator with the highest precedence (this is in some sense the opposite of the way we compute a function). If this operator is an infix one, we can divide the expression into a left hand one and a right hand one. The process is then repeated, generating left and right subtrees.

We still need to decide what to do with two operators of the same precedence. Should we regard


3 - 2 - 1

and, remember, that we are not yet talking about arithmetic evaluation!

We can use brackets to distinguish


(3 - 2) -1


3 - (2 - 1)

The normal interpretation of ``-'' is left associative. The common left associative operators are:

Are there any right associative operators? Yes ---consider how we are to disambiguate


a,b,c

The answer is that ,/2 is right associative. Usually, we do not have to concern ourselves with the details of this.

In all the previous cases we have allowed exactly one subtree to have, as its root, the same operator as the ``principal'' root. We can extend this to permit operators of the same precedence. Thus, since ``+'' and ``-'' have the same precedence, we know that both operators in


3 - 2 + 1


(3 - 2) +1.

Sometimes, we do not wish to permit left or right associativity. For example, obvious interpretations of:


a:- b :- c

Y is Z+1 is 3

a --> b --> c
