Reflect



The reflect command requires one axis to be specified. It reflects the object in the plane through the origin that is normal to this axis. This is the plane defined by the other two axes.

  object reflect(axis the_axis, object x);

The example is shown in figure 4

Example

  yellow_cone = reflect(Z,yellow_cone);

  figure152

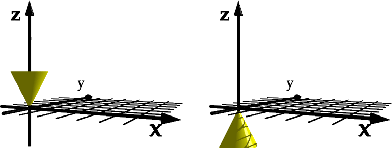

Figure 4: Reflecting a cone in Z
